Building a ChatGPT-Powered EA with an Interactive Dashboard in MQL5 for AI-Assisted Forex Trading

//+------------------------------------------------------------------+
//| Create Dashboard Elements                                        |
//+------------------------------------------------------------------+
void CreateDashboard() {
   objCount = 0;                             //--- Reset object count
   g_mainHeight = g_headerHeight + 2 * g_padding + g_displayHeight + g_footerHeight; //--- Calculate main dashboard height
   int displayX = g_mainContentX + g_sidePadding; //--- Calculate display x position
   int displayY = g_mainY + g_headerHeight + g_padding; //--- Calculate display y position
   int displayW = g_mainWidth - 2 * g_sidePadding; //--- Calculate display width
   int footerY = displayY + g_displayHeight + g_padding; //--- Calculate footer y position
   int promptY = footerY + g_margin;         //--- Calculate prompt y position
   int buttonsY = promptY + g_promptHeight + g_margin; //--- Calculate buttons y position
   int buttonW = 140;                        //--- Set button width
   int chartX = g_mainContentX + g_sidePadding; //--- Calculate chart button x position
   int sendX = g_mainContentX + g_mainWidth - g_sidePadding - buttonW; //--- Calculate send button x position
   dashboardObjects[objCount++] = "ChatGPT_MainContainer"; //--- Store main container object name
   createRecLabel("ChatGPT_MainContainer", g_mainContentX, g_mainY, g_mainWidth, g_mainHeight, clrWhite, 1, clrLightGray); //--- Create main container rectangle
   dashboardObjects[objCount++] = "ChatGPT_HeaderBg"; //--- Store header background object name
   createRecLabel("ChatGPT_HeaderBg", g_mainContentX, g_mainY, g_mainWidth, g_headerHeight, clrWhiteSmoke, 0, clrNONE); //--- Create header background rectangle
   string logo_resource = (StringLen(g_scaled_image_resource) > 0) ? g_scaled_image_resource : resourceImg; //--- Select header logo resource
   dashboardObjects[objCount++] = "ChatGPT_HeaderLogo"; //--- Store header logo object name
   createBitmapLabel("ChatGPT_HeaderLogo", g_mainContentX + g_sidePadding, g_mainY + (g_headerHeight - 40)/2, 104, 40, logo_resource, clrWhite, CORNER_LEFT_UPPER); //--- Create header logo
   string title = "ChatGPT AI EA";           //--- Set dashboard title
   string titleFont = "Arial Rounded MT Bold"; //--- Set title font
   int titleSize = 14;                       //--- Set title font size
   TextSetFont(titleFont, titleSize);        //--- Set title font
   uint titleWid, titleHei;                  //--- Declare title dimensions
   TextGetSize(title, titleWid, titleHei);   //--- Get title dimensions
   int titleY = g_mainY + (g_headerHeight - (int)titleHei) / 2 - 4; //--- Calculate title y position
   int titleX = g_mainContentX + g_sidePadding + 104 + 5; //--- Calculate title x position
   dashboardObjects[objCount++] = "ChatGPT_TitleLabel"; //--- Store title label object name
   createLabel("ChatGPT_TitleLabel", titleX, titleY, title, clrDarkSlateGray, titleSize, titleFont, CORNER_LEFT_UPPER, ANCHOR_LEFT_UPPER); //--- Create title label
   string dateStr = TimeToString(TimeTradeServer(), TIME_MINUTES); //--- Get current server time
   string dateFont = "Arial";                //--- Set date font
   int dateSize = 12;                        //--- Set date font size
   TextSetFont(dateFont, dateSize);          //--- Set date font
   uint dateWid, dateHei;                    //--- Declare date dimensions
   TextGetSize(dateStr, dateWid, dateHei);   //--- Get date dimensions
   int dateX = g_mainContentX + g_mainWidth / 2 - (int)(dateWid / 2) + 20; //--- Calculate date x position
   int dateY = g_mainY + (g_headerHeight - (int)dateHei) / 2 - 4; //--- Calculate date y position
   dashboardObjects[objCount++] = "ChatGPT_DateLabel"; //--- Store date label object name
   createLabel("ChatGPT_DateLabel", dateX, dateY, dateStr, clrSlateGray, dateSize, dateFont, CORNER_LEFT_UPPER, ANCHOR_LEFT_UPPER); //--- Create date label
   int closeWidth = 100;                     //--- Set close button width
   int closeX = g_mainContentX + g_mainWidth - closeWidth - g_sidePadding; //--- Calculate close button x position
   int closeY = g_mainY + 4;                 //--- Calculate close button y position
   dashboardObjects[objCount++] = "ChatGPT_CloseButton"; //--- Store close button object name
   createButton("ChatGPT_CloseButton", closeX, closeY, closeWidth, g_headerHeight - 8, "Close", clrWhite, 11, close_original_bg, clrGray); //--- Create close button
   dashboardObjects[objCount++] = "ChatGPT_ResponseBg"; //--- Store response background object name
   createRecLabel("ChatGPT_ResponseBg", displayX, displayY, displayW, g_displayHeight, clrWhite, 1, clrGainsboro, BORDER_FLAT, STYLE_SOLID); //--- Create response background rectangle
   dashboardObjects[objCount++] = "ChatGPT_FooterBg"; //--- Store footer background object name
   createRecLabel("ChatGPT_FooterBg", g_mainContentX, footerY, g_mainWidth, g_footerHeight, clrGainsboro, 0, clrNONE); //--- Create footer background rectangle
   dashboardObjects[objCount++] = "ChatGPT_PromptBg"; //--- Store prompt background object name
   createRecLabel("ChatGPT_PromptBg", displayX, promptY, displayW, g_promptHeight, g_promptBg, 1, g_promptBg, BORDER_FLAT, STYLE_SOLID); //--- Create prompt background rectangle
   int editY = promptY + g_promptHeight - g_editHeight - 5; //--- Calculate edit field y position
   int editX = displayX + g_textPadding;     //--- Calculate edit field x position
   g_editW = displayW - 2 * g_textPadding;   //--- Calculate edit field width
   dashboardObjects[objCount++] = "ChatGPT_PromptEdit"; //--- Store prompt edit object name
   createEdit("ChatGPT_PromptEdit", editX, editY, g_editW, g_editHeight, "", clrBlack, 13, DarkenColor(g_promptBg,0.93), DarkenColor(g_promptBg,0.87),"Calibri"); //--- Create prompt edit field
   ObjectSetInteger(0, "ChatGPT_PromptEdit", OBJPROP_BORDER_TYPE, BORDER_FLAT); //--- Set edit field border type
   dashboardObjects[objCount++] = "ChatGPT_GetChartButton"; //--- Store chart button object name
   createButton("ChatGPT_GetChartButton", chartX, buttonsY, buttonW, g_buttonHeight, "Get Chart Data", clrWhite, 11, chart_button_bg, clrDarkGreen); //--- Create chart data button
   dashboardObjects[objCount++] = "ChatGPT_SendPromptButton"; //--- Store send button object name
   createButton("ChatGPT_SendPromptButton", sendX, buttonsY, buttonW, g_buttonHeight, "Send Prompt", clrWhite, 11, button_original_bg, clrDarkBlue); //--- Create send prompt button
   ChartRedraw();                            //--- Redraw chart
}

//+------------------------------------------------------------------+
//| Expert Initialization Function                                   |
//+------------------------------------------------------------------+
int OnInit() {
   button_darker_bg = DarkenColor(button_original_bg); //--- Set darker background for submit button
   clear_darker_bg = DarkenColor(clear_original_bg);  //--- Set darker background for clear button
   new_chat_darker_bg = DarkenColor(new_chat_original_bg); //--- Set darker background for new chat button
   chart_button_darker_bg = DarkenColor(chart_button_bg); //--- Set darker background for chart button
   close_darker_bg = DarkenColor(close_original_bg);  //--- Set darker background for close button
   logFileHandle = FileOpen(LogFileName, FILE_READ | FILE_WRITE | FILE_TXT); //--- Open log file for reading and writing
   if (logFileHandle == INVALID_HANDLE) {             //--- Check if file opening failed
      Print("Failed to open log file: ", GetLastError()); //--- Log error
      return(INIT_FAILED);                            //--- Return initialization failure
   }
   FileSeek(logFileHandle, 0, SEEK_END);             //--- Move file pointer to end
   uint img_pixels[];                                //--- Declare array for main image pixels
   uint orig_width = 0, orig_height = 0;             //--- Initialize main image dimensions
   bool image_loaded = ResourceReadImage(resourceImg, img_pixels, orig_width, orig_height); //--- Load main image resource
   if (image_loaded && orig_width > 0 && orig_height > 0) { //--- Check if main image loaded successfully
      ScaleImage(img_pixels, (int)orig_width, (int)orig_height, 104, 40); //--- Scale main image to 104x40
      g_scaled_image_resource = "::ChatGPT_HeaderImageScaled"; //--- Set scaled main image resource name
      if (ResourceCreate(g_scaled_image_resource, img_pixels, 104, 40, 0, 0, 104, COLOR_FORMAT_ARGB_NORMALIZE)) { //--- Create scaled main image resource
         Print("Scaled image resource created successfully"); //--- Log success
      } else {                                       //--- Handle resource creation failure
         Print("Failed to create scaled image resource"); //--- Log error
      }
   } else {                                          //--- Handle main image load failure
      Print("Failed to load original image resource"); //--- Log error
   }
   uint img_pixels_logo[];                           //--- Declare array for logo image pixels
   uint orig_width_logo = 0, orig_height_logo = 0;   //--- Initialize logo image dimensions
   bool image_loaded_logo = ResourceReadImage(resourceImgLogo, img_pixels_logo, orig_width_logo, orig_height_logo); //--- Load logo image resource
   if (image_loaded_logo && orig_width_logo > 0 && orig_height_logo > 0) { //--- Check if logo image loaded successfully
      ScaleImage(img_pixels_logo, (int)orig_width_logo, (int)orig_height_logo, 81, 81); //--- Scale logo image to 81x81
      g_scaled_sidebar_resource = "::ChatGPT_SidebarImageScaled"; //--- Set scaled logo image resource name
      if (ResourceCreate(g_scaled_sidebar_resource, img_pixels_logo, 81, 81, 0, 0, 81, COLOR_FORMAT_ARGB_NORMALIZE)) { //--- Create scaled logo image resource
         Print("Scaled sidebar image resource created successfully"); //--- Log success
      } else {                                       //--- Handle resource creation failure
         Print("Failed to create scaled sidebar image resource"); //--- Log error
      }
   } else {                                          //--- Handle logo image load failure
      Print("Failed to load sidebar image resource"); //--- Log error
   }
   uint img_pixels_newchat[];                        //--- Declare array for new chat icon pixels
   uint orig_width_newchat = 0, orig_height_newchat = 0; //--- Initialize new chat icon dimensions
   bool image_loaded_newchat = ResourceReadImage(resourceNewChat, img_pixels_newchat, orig_width_newchat, orig_height_newchat); //--- Load new chat icon resource
   if (image_loaded_newchat && orig_width_newchat > 0 && orig_height_newchat > 0) { //--- Check if new chat icon loaded successfully
      ScaleImage(img_pixels_newchat, (int)orig_width_newchat, (int)orig_height_newchat, 30, 30); //--- Scale new chat icon to 30x30
      g_scaled_newchat_resource = "::ChatGPT_NewChatIconScaled"; //--- Set scaled new chat icon resource name
      if (ResourceCreate(g_scaled_newchat_resource, img_pixels_newchat, 30, 30, 0, 0, 30, COLOR_FORMAT_ARGB_NORMALIZE)) { //--- Create scaled new chat icon resource
         Print("Scaled new chat icon resource created successfully"); //--- Log success
      } else {                                       //--- Handle resource creation failure
         Print("Failed to create scaled new chat icon resource"); //--- Log error
      }
   } else {                                          //--- Handle new chat icon load failure
      Print("Failed to load new chat icon resource"); //--- Log error
   }
   uint img_pixels_clear[];                          //--- Declare array for clear icon pixels
   uint orig_width_clear = 0, orig_height_clear = 0; //--- Initialize clear icon dimensions
   bool image_loaded_clear = ResourceReadImage(resourceClear, img_pixels_clear, orig_width_clear, orig_height_clear); //--- Load clear icon resource
   if (image_loaded_clear && orig_width_clear > 0 && orig_height_clear > 0) { //--- Check if clear icon loaded successfully
      ScaleImage(img_pixels_clear, (int)orig_width_clear, (int)orig_height_clear, 30, 30); //--- Scale clear icon to 30x30
      g_scaled_clear_resource = "::ChatGPT_ClearIconScaled"; //--- Set scaled clear icon resource name
      if (ResourceCreate(g_scaled_clear_resource, img_pixels_clear, 30, 30, 0, 0, 30, COLOR_FORMAT_ARGB_NORMALIZE)) { //--- Create scaled clear icon resource
         Print("Scaled clear icon resource created successfully"); //--- Log success
      } else {                                       //--- Handle resource creation failure
         Print("Failed to create scaled clear icon resource"); //--- Log error
      }
   } else {                                          //--- Handle clear icon load failure
      Print("Failed to load clear icon resource"); //--- Log error
   }
   uint img_pixels_history[];                        //--- Declare array for history icon pixels
   uint orig_width_history = 0, orig_height_history = 0; //--- Initialize history icon dimensions
   bool image_loaded_history = ResourceReadImage(resourceHistory, img_pixels_history, orig_width_history, orig_height_history); //--- Load history icon resource
   if (image_loaded_history && orig_width_history > 0 && orig_height_history > 0) { //--- Check if history icon loaded successfully
      ScaleImage(img_pixels_history, (int)orig_width_history, (int)orig_height_history, 30, 30); //--- Scale history icon to 30x30
      g_scaled_history_resource = "::ChatGPT_HistoryIconScaled"; //--- Set scaled history icon resource name
      if (ResourceCreate(g_scaled_history_resource, img_pixels_history, 30, 30, 0, 0, 30, COLOR_FORMAT_ARGB_NORMALIZE)) { //--- Create scaled history icon resource
         Print("Scaled history icon resource created successfully"); //--- Log success
      } else {                                       //--- Handle resource creation failure
         Print("Failed to create scaled history icon resource"); //--- Log error
      }
   } else {                                          //--- Handle history icon load failure
      Print("Failed to load history icon resource"); //--- Log error
   }
   g_mainHeight = g_headerHeight + 2 * g_padding + g_displayHeight + g_footerHeight; //--- Calculate main dashboard height
   createRecLabel("ChatGPT_DashboardBg", g_dashboardX, g_mainY, g_dashboardWidth, g_mainHeight, clrWhite, 1, clrLightGray); //--- Create dashboard background rectangle
   ObjectSetInteger(0, "ChatGPT_DashboardBg", OBJPROP_ZORDER, 0); //--- Set dashboard background z-order
   createRecLabel("ChatGPT_SidebarBg", g_dashboardX+2, g_mainY+2, g_sidebarWidth - 2 - 1, g_mainHeight - 2 - 2, clrGainsboro, 1, clrNONE); //--- Create sidebar background rectangle
   ObjectSetInteger(0, "ChatGPT_SidebarBg", OBJPROP_ZORDER, 0); //--- Set sidebar background z-order
   CreateDashboard();                                //--- Create dashboard elements
   UpdateResponseDisplay();                          //--- Update response display
   CreatePlaceholder();                              //--- Create prompt placeholder
   ChartSetInteger(0, CHART_EVENT_MOUSE_MOVE, true); //--- Enable mouse move events
   ChartSetInteger(0, CHART_EVENT_MOUSE_WHEEL, true); //--- Enable mouse wheel events
   ChartSetInteger(0, CHART_MOUSE_SCROLL, true);     //--- Enable chart mouse scrolling
   return(INIT_SUCCEEDED);                           //--- Return initialization success
}

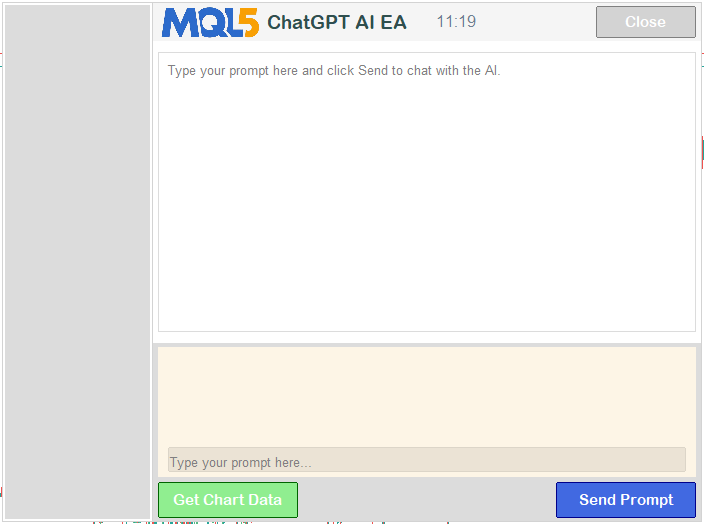

Now that we have the updated display, we will need to work on getting the chart data, showing on the prompt display, and sending it for analysis. That being said, we will need to better handle UTF-8 since we will be handling critical data, and also, enhance logging, which can be removed later, just so we can see what we are doing exactly, so in case of issues, we can resolve them. Let us start with the function to update our prompt display, which will use a similar approach to that of the response display.

//+------------------------------------------------------------------+
//| Update Prompt Display                                            |
//+------------------------------------------------------------------+
void UpdatePromptDisplay() {
   int total = ObjectsTotal(0, 0, -1);       //--- Get total number of chart objects
   for (int j = total - 1; j >= 0; j--) {   //--- Iterate through objects in reverse
      string name = ObjectName(0, j, 0, -1); //--- Get object name
      if (StringFind(name, "ChatGPT_PromptLine_") == 0) { //--- Check if object is prompt line
         ObjectDelete(0, name);              //--- Delete prompt line object
      }
   }
   int promptX = g_mainContentX + g_sidePadding; //--- Calculate prompt x position
   int footerY = g_mainY + g_headerHeight + g_padding + g_displayHeight + g_padding; //--- Calculate footer y position
   int promptY = footerY + g_margin;         //--- Calculate prompt y position
   int textX = promptX + g_textPadding;      //--- Calculate text x position
   int textY = promptY + g_textPadding;      //--- Calculate text y position
   int editY = promptY + g_promptHeight - g_editHeight - 5; //--- Calculate edit field y position
   int fullMaxWidth = g_mainWidth - 2 * g_sidePadding - 2 * g_textPadding; //--- Calculate maximum text width
   int visibleHeight = editY - textY - g_textPadding - g_margin; //--- Calculate visible height
   if (currentPrompt == "") {                //--- Check if prompt is empty
      p_total_height = 0;                    //--- Set total prompt height to zero
      p_visible_height = visibleHeight;       //--- Set visible prompt height
      if (p_scroll_visible) {                //--- Check if prompt scrollbar is visible
         DeletePromptScrollbar();            //--- Delete prompt scrollbar
         p_scroll_visible = false;           //--- Set prompt scrollbar visibility to false
      }
      ObjectSetInteger(0, "ChatGPT_PromptEdit", OBJPROP_XSIZE, g_editW); //--- Set edit field width
      ChartRedraw();                         //--- Redraw chart
      return;                                //--- Exit function
   }
   string font = "Arial";                    //--- Set font for prompt
   int fontSize = 10;                        //--- Set font size for prompt
   int lineHeight = TextGetHeight("A", font, fontSize); //--- Calculate line height
   int adjustedLineHeight = lineHeight + g_lineSpacing; //--- Adjust line height with spacing
   p_visible_height = visibleHeight;         //--- Set global visible prompt height
   string wrappedLines[];                    //--- Declare array for wrapped lines
   WrapText(currentPrompt, font, fontSize, fullMaxWidth, wrappedLines); //--- Wrap prompt text
   int totalLines = ArraySize(wrappedLines); //--- Get number of wrapped lines
   int totalHeight = totalLines * adjustedLineHeight; //--- Calculate total height
   bool need_scroll = totalHeight > visibleHeight; //--- Check if scrollbar is needed
   bool should_show_scrollbar = false;       //--- Initialize scrollbar visibility
   int reserved_width = 0;                   //--- Initialize reserved width for scrollbar
   if (ScrollbarMode != SCROLL_WHEEL_ONLY) { //--- Check if scrollbar mode allows display
      should_show_scrollbar = need_scroll && (ScrollbarMode == SCROLL_DYNAMIC_ALWAYS || (ScrollbarMode == SCROLL_DYNAMIC_HOVER && mouse_in_prompt)); //--- Determine if scrollbar should show
      if (should_show_scrollbar) {           //--- Check if scrollbar is visible
         reserved_width = 16;                //--- Reserve width for scrollbar
      }
   }
   if (reserved_width > 0) {                 //--- Check if scrollbar space reserved
      WrapText(currentPrompt, font, fontSize, fullMaxWidth - reserved_width, wrappedLines); //--- Re-wrap text with adjusted width
      totalLines = ArraySize(wrappedLines);  //--- Update number of wrapped lines
      totalHeight = totalLines * adjustedLineHeight; //--- Update total height
   }
   p_total_height = totalHeight;             //--- Set global total prompt height
   bool prev_p_scroll_visible = p_scroll_visible; //--- Store previous prompt scrollbar visibility
   p_scroll_visible = should_show_scrollbar; //--- Update prompt scrollbar visibility
   if (p_scroll_visible != prev_p_scroll_visible) { //--- Check if visibility changed
      if (p_scroll_visible) {                //--- Check if scrollbar should be shown
         CreatePromptScrollbar();            //--- Create prompt scrollbar
      } else {                               //--- Scrollbar not needed
         DeletePromptScrollbar();            //--- Delete prompt scrollbar
      }
   }
   ObjectSetInteger(0, "ChatGPT_PromptEdit", OBJPROP_XSIZE, g_editW - reserved_width); //--- Adjust edit field width
   int max_scroll = MathMax(0, totalHeight - visibleHeight); //--- Calculate maximum scroll distance
   if (p_scroll_pos > max_scroll) p_scroll_pos = max_scroll; //--- Clamp prompt scroll position
   if (p_scroll_pos < 0) p_scroll_pos = 0;   //--- Ensure prompt scroll position is non-negative
   if (p_scroll_visible) {                   //--- Check if prompt scrollbar is visible
      p_slider_height = CalculatePromptSliderHeight(); //--- Calculate prompt slider height
      ObjectSetInteger(0, P_SCROLL_SLIDER, OBJPROP_YSIZE, p_slider_height); //--- Update prompt slider size
      UpdatePromptSliderPosition();          //--- Update prompt slider position
      UpdatePromptButtonColors();            //--- Update prompt scrollbar button colors
   }
   int currentY = textY - p_scroll_pos;      //--- Calculate current y position
   int endY = textY + visibleHeight;         //--- Calculate end y position
   int startLineIndex = 0;                   //--- Initialize start line index
   int currentHeight = 0;                    //--- Initialize current height
   for (int line = 0; line < totalLines; line++) { //--- Iterate through lines
      if (currentHeight >= p_scroll_pos) {   //--- Check if line is in view
         startLineIndex = line;              //--- Set start line index
         currentY = textY + (currentHeight - p_scroll_pos); //--- Update current y position
         break;                              //--- Exit loop
      }
      currentHeight += adjustedLineHeight;   //--- Add line height
   }
   int numVisibleLines = 0;                  //--- Initialize visible lines count
   int visibleHeightUsed = 0;                //--- Initialize used visible height
   for (int line = startLineIndex; line < totalLines; line++) { //--- Iterate from start line
      if (visibleHeightUsed + adjustedLineHeight > visibleHeight) break; //--- Check if exceeds visible height
      visibleHeightUsed += adjustedLineHeight; //--- Add to used height
      numVisibleLines++;                     //--- Increment visible lines
   }
   int textX_pos = textX;                    //--- Set text x position
   int maxTextX = g_mainContentX + g_mainWidth - g_sidePadding - g_textPadding - reserved_width; //--- Calculate maximum text x position
   color textCol = clrBlack;                 //--- Set text color
   for (int li = 0; li < numVisibleLines; li++) { //--- Iterate through visible lines
      int lineIndex = startLineIndex + li;   //--- Calculate line index
      if (lineIndex >= totalLines) break;    //--- Check if index exceeds total lines
      string line = wrappedLines[lineIndex]; //--- Get line text
      string display_line = line;            //--- Initialize display line
      if (line == " ") {                     //--- Check if line is empty
         display_line = " ";                 //--- Set display line to space
         textCol = clrWhite;                 //--- Set text color to white
      }
      string lineName = "ChatGPT_PromptLine_" + IntegerToString(lineIndex); //--- Generate line object name
      if (currentY >= textY && currentY < endY) { //--- Check if line is visible
         createLabel(lineName, textX_pos, currentY, display_line, textCol, fontSize, font, CORNER_LEFT_UPPER, ANCHOR_LEFT_UPPER); //--- Create line label
      }
      currentY += adjustedLineHeight;        //--- Update current y position
   }
   ChartRedraw();                            //--- Redraw chart
}

If "currentPrompt" is empty, we reset "p_total_height", set "p_visible_height", remove the scrollbar with "DeletePromptScrollbar", and adjust the "ChatGPT_PromptEdit" width using ObjectSetInteger.

For non-empty prompts, we wrap text into lines using the "WrapText" function we defined earlier, compute "p_total_height" from "adjustedLineHeight", and dynamically show or hide the scrollbar based on "ScrollbarMode" and "mouse_in_prompt", reserving space with "reserved_width" if needed. We then render visible lines as "ChatGPT_PromptLine_" labels with "createLabel", updating positions with "p_scroll_pos" and refreshing the chart with ChartRedraw for seamless interaction. To append the chart data to the prompt, we implement the following function.

//+------------------------------------------------------------------+
//| Convert Timeframe to String                                      |
//+------------------------------------------------------------------+
string PeriodToString(ENUM_TIMEFRAMES period) {
   switch(period) {                          //--- Switch on timeframe
      case PERIOD_M1: return "M1";           //--- Return M1 for 1-minute
      case PERIOD_M5: return "M5";           //--- Return M5 for 5-minute
      case PERIOD_M15: return "M15";         //--- Return M15 for 15-minute
      case PERIOD_M30: return "M30";         //--- Return M30 for 30-minute
      case PERIOD_H1: return "H1";           //--- Return H1 for 1-hour
      case PERIOD_H4: return "H4";           //--- Return H4 for 4-hour
      case PERIOD_D1: return "D1";           //--- Return D1 for daily
      case PERIOD_W1: return "W1";           //--- Return W1 for weekly
      case PERIOD_MN1: return "MN1";         //--- Return MN1 for monthly
      default: return IntegerToString(period); //--- Return period as string for others
   }
}

//+------------------------------------------------------------------+
//| Append Chart Data to Prompt                                      |
//+------------------------------------------------------------------+
void GetAndAppendChartData() {
   string symbol = Symbol();                  //--- Get current chart symbol
   ENUM_TIMEFRAMES tf = (ENUM_TIMEFRAMES)_Period; //--- Get current timeframe
   string timeframe = PeriodToString(tf);     //--- Convert timeframe to string
   long visibleBarsLong = ChartGetInteger(0, CHART_VISIBLE_BARS); //--- Get number of visible bars
   int visibleBars = (int)visibleBarsLong;   //--- Convert visible bars to integer
   MqlRates rates[];                         //--- Declare array for rate data
   int copied = CopyRates(symbol, tf, 0, MaxChartBars, rates); //--- Copy recent bar data
   if (copied != MaxChartBars) {             //--- Check if copy failed
      Print("Failed to copy rates: ", GetLastError()); //--- Log error
      return;                                //--- Exit function
   }
   ArraySetAsSeries(rates, true);            //--- Set rates as time series
   string data = "Chart Details: Symbol=" + symbol + ", Timeframe=" + timeframe + ", Visible Bars=" + IntegerToString(visibleBars) + "\n"; //--- Build chart details string
   data += "Recent Bars Data (Bar 1 is latest):\n"; //--- Add header for bar data
   for (int i = 0; i < copied; i++) {       //--- Iterate through copied bars
      data += "Bar " + IntegerToString(i + 1) + ": Date=" + TimeToString(rates[i].time, TIME_DATE | TIME_MINUTES) + ", Open=" + DoubleToString(rates[i].open, _Digits) + ", High=" + DoubleToString(rates[i].high, _Digits) + ", Low=" + DoubleToString(rates[i].low, _Digits) + ", Close=" + DoubleToString(rates[i].close, _Digits) + ", Volume=" + IntegerToString((int)rates[i].tick_volume) + "\n"; //--- Add bar data
   }
   Print("Chart data appended to prompt: \n" + data); //--- Log chart data
   FileWrite(logFileHandle, "Chart data appended to prompt: \n" + data); //--- Write chart data to log
   string fileName = "candlesticksdata.txt"; //--- Set file name for chart data
   int handle = FileOpen(fileName, FILE_WRITE | FILE_TXT | FILE_ANSI); //--- Open file for writing
   if (handle == INVALID_HANDLE) {           //--- Check if file opening failed
      Print("Failed to open file for writing: ", GetLastError()); //--- Log error
      return;                                //--- Exit function
   }
   FileWriteString(handle, data);            //--- Write chart data to file
   FileClose(handle);                        //--- Close file
   handle = FileOpen(fileName, FILE_READ | FILE_TXT | FILE_ANSI); //--- Open file for reading
   if (handle == INVALID_HANDLE) {           //--- Check if file opening failed
      Print("Failed to open file for reading: ", GetLastError()); //--- Log error
      return;                                //--- Exit function
   }
   string fileContent = "";                  //--- Initialize file content string
   while (!FileIsEnding(handle)) {           //--- Loop until end of file
      fileContent += FileReadString(handle) + "\n"; //--- Read and append line
   }
   FileClose(handle);                        //--- Close file
   if (StringLen(currentPrompt) > 0) {       //--- Check if prompt is non-empty
      currentPrompt += "\n";                 //--- Append newline to prompt
   }
   currentPrompt += fileContent;             //--- Append chart data to prompt
   DeletePlaceholder();                      //--- Delete prompt placeholder
   UpdatePromptDisplay();                    //--- Update prompt display
   p_scroll_pos = MathMax(0, p_total_height - p_visible_height); //--- Set prompt scroll to bottom
   if (p_scroll_visible) {                   //--- Check if prompt scrollbar is visible
      UpdatePromptSliderPosition();          //--- Update prompt slider position
      UpdatePromptButtonColors();            //--- Update prompt scrollbar button colors
   }
   ChartRedraw();                            //--- Redraw chart
}

Then, we roll out the "GetAndAppendChartData" function, our data-fetching bloodhound. It sniffs out the current chart's symbol with "Symbol", grabs the timeframe with _Period, and counts the visible bars with ChartGetInteger. Then, it uses CopyRates to fetch a fresh batch of recent market data, stuffing it all into an MqlRates array. We take this raw data and pretty it up, formatting the open, high, low, close, and volume into a neat string using TimeToString and DoubleToString—turning a chaotic mess of numbers into a presentable report.

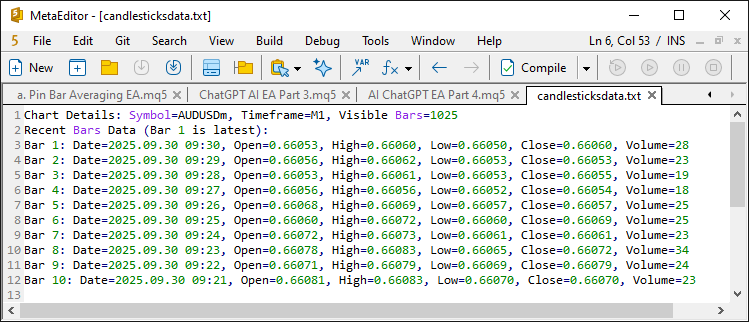

We then log this financial gossip, save it to "candlesticksdata.txt" using "FileWriteString", and immediately read it back with FileReadString (we like to be thorough). This juicy data is then appended to the "currentPrompt" for the AI to chew on. Finally, we refresh the whole display by calling "DeletePlaceholder" and "UpdatePromptDisplay", and give the scrollbar a fresh coat of paint with "UpdatePromptSliderPosition" and "UpdatePromptButtonColors". This ensures that when we click 'send chart data,' we first download and store the market's life story, as shown below.

Since we will be building the messages from history that we will use to track the conversation, we need to advance our function to consider the new chart data that we send to the AI, since it has a new format, so we consider all content between roles.

//+------------------------------------------------------------------+
//| Build JSON Messages from History                                 |
//+------------------------------------------------------------------+
string BuildMessagesFromHistory(string newPrompt) {
   string lines[];                           //--- Declare array for history lines
   int numLines = StringSplit(conversationHistory, '\n', lines); //--- Split history into lines
   string messages = "[";                    //--- Initialize JSON messages array
   string currentRole = "";                  //--- Initialize current role
   string currentContent = "";               //--- Initialize current content
   for (int i = 0; i < numLines; i++) {     //--- Iterate through history lines
      string line = lines[i];                //--- Get current line
      string trimmed = line;                 //--- Copy line for trimming
      StringTrimLeft(trimmed);               //--- Remove leading whitespace
      StringTrimRight(trimmed);              //--- Remove trailing whitespace
      if (StringLen(trimmed) == 0 || IsTimestamp(trimmed)) continue; //--- Skip empty or timestamp lines
      if (StringFind(trimmed, "You: ") == 0) { //--- Check if user message
         if (currentRole != "") {            //--- Check if previous message exists
            string roleJson = (currentRole == "User") ? "user" : "assistant"; //--- Set JSON role
            messages += "{\"role\":\"" + roleJson + "\",\"content\":\"" + JsonEscape(currentContent) + "\"},"; //--- Add message to JSON
         }
         currentRole = "User";              //--- Set role to user
         currentContent = StringSubstr(line, StringFind(line, "You: ") + 5); //--- Extract user message
      } else if (StringFind(trimmed, "AI: ") == 0) { //--- Check if AI message
         if (currentRole != "") {            //--- Check if previous message exists
            string roleJson = (currentRole == "User") ? "user" : "assistant"; //--- Set JSON role
            messages += "{\"role\":\"" + roleJson + "\",\"content\":\"" + JsonEscape(currentContent) + "\"},"; //--- Add message to JSON
         }
         currentRole = "AI";                //--- Set role to AI
         currentContent = StringSubstr(line, StringFind(line, "AI: ") + 4); //--- Extract AI message
      } else if (currentRole != "") {       //--- Handle continuation line
         currentContent += "\n" + line;     //--- Append line to content
      }
   }
   if (currentRole != "") {                  //--- Check if final message exists
      string roleJson = (currentRole == "User") ? "user" : "assistant"; //--- Set JSON role
      messages += "{\"role\":\"" + roleJson + "\",\"content\":\"" + JsonEscape(currentContent) + "\"},"; //--- Add final message to JSON
   }
   messages += "{\"role\":\"user\",\"content\":\"" + JsonEscape(newPrompt) + "\"}]"; //--- Add new prompt to JSON
   return messages;                          //--- Return JSON messages
}

Next, we play detective: we identify user messages that start with "You: " and AI messages that start with "AI: " using StringFind, then extract the juicy content with StringSubstr. We then build a pristine JSON array named "messages" by appending each message as a JSON object with its designated role ("user" or "assistant"), escaping the content for good behavior using "JsonEscape". This ensures our new prompt gets the royal treatment as the final user message.

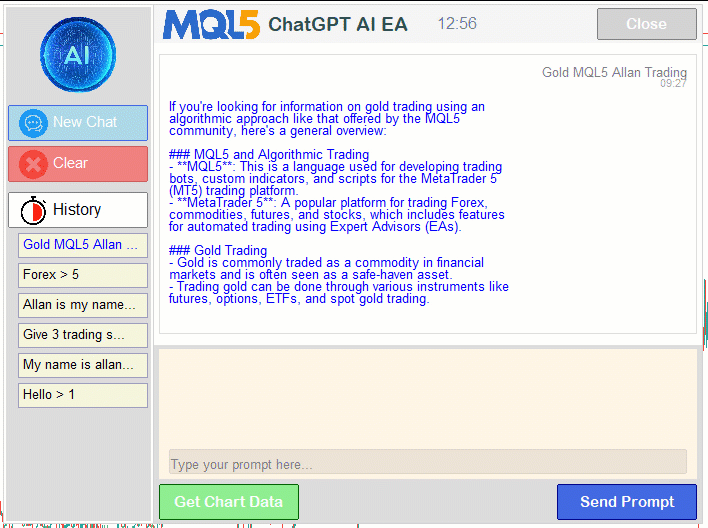

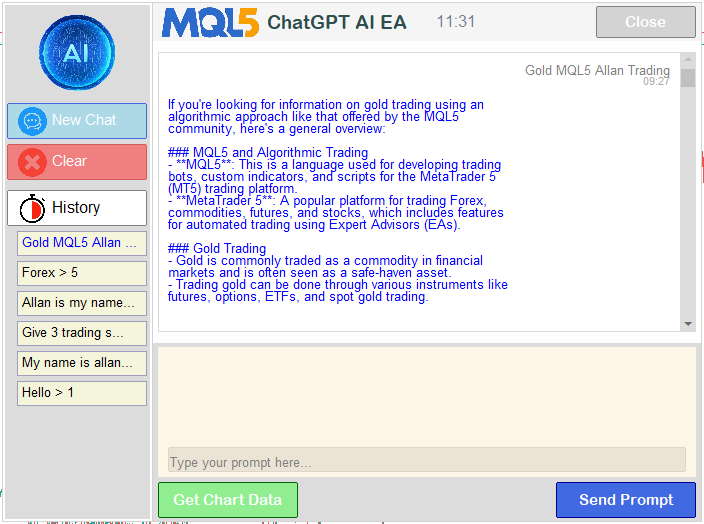

Now, let's tackle the sidebar. We're going to update it with all the necessary elements and introduce persistent chats, because who doesn't love a good conversation that doesn't just vanish? But first, we need to define the chat's core logic, which will become the engine for rendering our complete navigation bar.

//+------------------------------------------------------------------+
//| Chat Structure Definition                                        |
//+------------------------------------------------------------------+
struct Chat {
   int id;                                        //--- Store chat ID
   string title;                                  //--- Store chat title
   string history;                                //--- Store chat history
};
Chat chats[];                                     //--- Declare array for chat storage
int current_chat_id = -1;                         //--- Store current chat ID
string current_title = "";                        //--- Store current chat title
string chatsFileName = "ChatGPT_Chats.txt";       //--- Set file name for chat storage

//+------------------------------------------------------------------+
//| Encode Chat ID to Base62                                         |
//+------------------------------------------------------------------+
string EncodeID(int id) {
   string chars = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ"; //--- Define base62 character set
   string res = "";                                //--- Initialize result string
   if (id == 0) return "0";                        //--- Return "0" for zero ID
   while (id > 0) {                                //--- Loop while ID is positive
      res = StringSubstr(chars, id % 62, 1) + res; //--- Prepend base62 character
      id /= 62;                                    //--- Divide ID by 62
   }
   return res;                                     //--- Return encoded ID
}

//+------------------------------------------------------------------+
//| Decode Base62 Chat ID                                            |
//+------------------------------------------------------------------+
int DecodeID(string enc) {
   string chars = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ"; //--- Define base62 character set
   int id = 0;                                     //--- Initialize decoded ID
   for (int i = 0; i < StringLen(enc); i++) {      //--- Iterate through encoded string
      id = id * 62 + StringFind(chars, StringSubstr(enc, i, 1)); //--- Calculate ID value
   }
   return id;                                      //--- Return decoded ID
}

//+------------------------------------------------------------------+
//| Load Chats from File                                             |
//+------------------------------------------------------------------+
void LoadChats() {
   if (!FileIsExist(chatsFileName)) {              //--- Check if chats file exists
      CreateNewChat();                             //--- Create new chat if file not found
      return;                                      //--- Exit function
   }
   int handle = FileOpen(chatsFileName, FILE_READ | FILE_BIN); //--- Open chats file for reading
   if (handle == INVALID_HANDLE) {                 //--- Check if file opening failed
      Print("Failed to load chats: ", GetLastError()); //--- Log error
      CreateNewChat();                             //--- Create new chat
      return;                                      //--- Exit function
   }
   int file_size = (int)FileSize(handle);          //--- Get file size
   uchar encoded_file[];                           //--- Declare array for encoded file data
   ArrayResize(encoded_file, file_size);           //--- Resize array to file size
   FileReadArray(handle, encoded_file, 0, file_size); //--- Read file data into array
   FileClose(handle);                              //--- Close file
   uchar empty_key[];                              //--- Declare empty key array
   uchar key[32];                                  //--- Declare key array for decryption
   uchar api_bytes[];                              //--- Declare array for API key bytes
   StringToCharArray(OpenAI_API_Key, api_bytes);   //--- Convert API key to byte array
   uchar hash[];                                   //--- Declare array for hash
   CryptEncode(CRYPT_HASH_SHA256, api_bytes, empty_key, hash); //--- Generate SHA256 hash of API key
   ArrayCopy(key, hash, 0, 0, 32);                 //--- Copy first 32 bytes of hash to key
   uchar decoded_aes[];                            //--- Declare array for AES-decrypted data
   int res_dec = CryptDecode(CRYPT_AES256, encoded_file, key, decoded_aes); //--- Decrypt file data with AES256
   if (res_dec <= 0) {                             //--- Check if decryption failed
      Print("Failed to decrypt chats: ", GetLastError()); //--- Log error
      CreateNewChat();                             //--- Create new chat
      return;                                      //--- Exit function
   }
   uchar decoded_zip[];                            //--- Declare array for unzipped data
   int res_zip = CryptDecode(CRYPT_ARCH_ZIP, decoded_aes, empty_key, decoded_zip); //--- Decompress decrypted data
   if (res_zip <= 0) {                             //--- Check if decompression failed
      Print("Failed to decompress chats: ", GetLastError()); //--- Log error
      CreateNewChat();                             //--- Create new chat
      return;                                      //--- Exit function
   }
   string jsonStr = CharArrayToString(decoded_zip); //--- Convert decompressed data to string
   char charArray[];                               //--- Declare array for JSON characters
   int len = StringToCharArray(jsonStr, charArray, 0, WHOLE_ARRAY, CP_UTF8); //--- Convert JSON string to char array
   JsonValue json;                                 //--- Declare JSON object
   int index = 0;                                  //--- Initialize JSON parsing index
   if (!json.DeserializeFromArray(charArray, len, index)) { //--- Parse JSON data
      Print("Failed to parse chats JSON");         //--- Log error
      CreateNewChat();                             //--- Create new chat
      return;                                      //--- Exit function
   }
   if (json.m_type != JsonArray) {                 //--- Check if JSON is an array
      Print("Chats JSON not an array");            //--- Log error
      CreateNewChat();                             //--- Create new chat
      return;                                      //--- Exit function
   }
   int size = ArraySize(json.m_children);          //--- Get number of chat objects
   ArrayResize(chats, size);                       //--- Resize chats array
   int max_id = 0;                                 //--- Initialize maximum chat ID
   for (int i = 0; i < size; i++) {                //--- Iterate through chat objects
      JsonValue obj = json.m_children[i];          //--- Get current chat object
      chats[i].id = (int)obj["id"].ToInteger();    //--- Set chat ID
      chats[i].title = obj["title"].ToString();    //--- Set chat title
      chats[i].history = obj["history"].ToString(); //--- Set chat history
      max_id = MathMax(max_id, chats[i].id);       //--- Update maximum chat ID
   }
   if (size > 0) {                                 //--- Check if chats exist
      current_chat_id = chats[size - 1].id;        //--- Set current chat ID to last chat
      current_title = chats[size - 1].title;       //--- Set current chat title
      conversationHistory = chats[size - 1].history; //--- Set current conversation history
   } else {                                        //--- No chats found
      CreateNewChat();                             //--- Create new chat
   }
}

//+------------------------------------------------------------------+
//| Save Chats to File                                               |
//+------------------------------------------------------------------+
void SaveChats() {
   JsonValue jsonArr;                            //--- Declare JSON array
   jsonArr.m_type = JsonArray;                   //--- Set JSON type to array
   for (int i = 0; i < ArraySize(chats); i++) {  //--- Iterate through chats
      JsonValue obj;                             //--- Declare JSON object
      obj.m_type = JsonObject;                   //--- Set JSON type to object
      obj["id"] = chats[i].id;                   //--- Set chat ID in JSON
      obj["title"] = chats[i].title;             //--- Set chat title in JSON
      obj["history"] = chats[i].history;         //--- Set chat history in JSON
      jsonArr.AddChild(obj);                     //--- Add object to JSON array
   }
   string jsonStr = jsonArr.SerializeToString(); //--- Serialize JSON array to string
   uchar data[];                                 //--- Declare array for JSON data
   StringToCharArray(jsonStr, data);             //--- Convert JSON string to byte array
   uchar empty_key[];                            //--- Declare empty key array
   uchar zipped[];                               //--- Declare array for zipped data
   int res_zip = CryptEncode(CRYPT_ARCH_ZIP, data, empty_key, zipped); //--- Compress JSON data
   if (res_zip <= 0) {                           //--- Check if compression failed
      Print("Failed to compress chats: ", GetLastError()); //--- Log error
      return;                                    //--- Exit function
   }
   uchar key[32];                                //--- Declare key array for encryption
   uchar api_bytes[];                            //--- Declare array for API key bytes
   StringToCharArray(OpenAI_API_Key, api_bytes); //--- Convert API key to byte array
   uchar hash[];                                 //--- Declare array for hash
   CryptEncode(CRYPT_HASH_SHA256, api_bytes, empty_key, hash); //--- Generate SHA256 hash of API key
   ArrayCopy(key, hash, 0, 0, 32);               //--- Copy first 32 bytes of hash to key
   uchar encoded[];                              //--- Declare array for encrypted data
   int res_enc = CryptEncode(CRYPT_AES256, zipped, key, encoded); //--- Encrypt compressed data with AES256
   if (res_enc <= 0) {                           //--- Check if encryption failed
      Print("Failed to encrypt chats: ", GetLastError()); //--- Log error
      return;                                    //--- Exit function
   }
   int handle = FileOpen(chatsFileName, FILE_WRITE | FILE_BIN); //--- Open chats file for writing
   if (handle == INVALID_HANDLE) {               //--- Check if file opening failed
      Print("Failed to save chats: ", GetLastError()); //--- Log error
      return;                                    //--- Exit function
   }
   FileWriteArray(handle, encoded, 0, res_enc);  //--- Write encrypted data to file
   FileClose(handle);                            //--- Close file
}

//+------------------------------------------------------------------+
//| Get Chat Index by ID                                             |
//+------------------------------------------------------------------+
int GetChatIndex(int id) {
   for (int i = 0; i < ArraySize(chats); i++) {  //--- Iterate through chats
      if (chats[i].id == id) return i;           //--- Return index if ID matches
   }
   return -1;                                    //--- Return -1 if ID not found
}

//+------------------------------------------------------------------+
//| Create New Chat                                                  |
//+------------------------------------------------------------------+
void CreateNewChat() {
   int max_id = 0;                               //--- Initialize maximum chat ID
   for (int i = 0; i < ArraySize(chats); i++) {  //--- Iterate through chats
      max_id = MathMax(max_id, chats[i].id);     //--- Update maximum chat ID
   }
   int new_id = max_id + 1;                      //--- Calculate new chat ID
   int size = ArraySize(chats);                  //--- Get current chats array size
   ArrayResize(chats, size + 1);                 //--- Resize chats array
   chats[size].id = new_id;                      //--- Set new chat ID
   chats[size].title = "Chat " + IntegerToString(new_id); //--- Set new chat title
   chats[size].history = "";                     //--- Initialize empty chat history
   current_chat_id = new_id;                     //--- Set current chat ID
   current_title = chats[size].title;            //--- Set current chat title
   conversationHistory = "";                     //--- Clear current conversation history
   SaveChats();                                  //--- Save chats to file
   UpdateSidebarDynamic();                       //--- Update sidebar display
   UpdateResponseDisplay();                      //--- Update response display
   UpdatePromptDisplay();                        //--- Update prompt display
   CreatePlaceholder();                          //--- Create prompt placeholder
   ChartRedraw();                                //--- Redraw chart to reflect changes
}

//+------------------------------------------------------------------+
//| Update Current Chat History                                      |
//+------------------------------------------------------------------+
void UpdateCurrentHistory() {
   int idx = GetChatIndex(current_chat_id);      //--- Get index of current chat
   if (idx >= 0) {                               //--- Check if valid index
      chats[idx].history = conversationHistory;  //--- Update chat history
      chats[idx].title = current_title;          //--- Update chat title
      SaveChats();                               //--- Save chats to file
   }
}

To keep things tidy, we create the "EncodeID" and "DecodeID" functions, which convert chat IDs to and from a compact "base62" format using a custom character set and StringSubstr, perfect for squeezing into our sidebar.

The "LoadChats" function is our digital archaeologist. It reads the "ChatGPT_Chats.txt" file with FileOpen, then goes on a decryption adventure using CryptDecode with "CRYPT_AES256" and a key derived from your "OpenAI_API_Key". After decompressing the data with "CRYPT_ARCH_ZIP", it parses the JSON with "DeserializeFromArray" to resurrect our "chats" array. If it finds only digital dust (or just errors), it wisely defaults to "CreateNewChat".

Conversely, "SaveChats" is the pack-rat. It serializes the "chats" array to JSON with "SerializeToString", squeezes it down with CryptEncode using "CRYPT_ARCH_ZIP", encrypts it with "CRYPT_AES256", and finally locks it all away in "ChatGPT_Chats.txt" using FileWriteArray.

We also whip up "GetChatIndex" to find a chat by its ID and "CreateNewChat" to spin up new conversations with fresh IDs, updating all the relevant trackers, saving the changes, and refreshing the UI. The "UpdateCurrentHistory" function ensures the current chat's "history" and "title" are always saved, making our chats gloriously persistent.

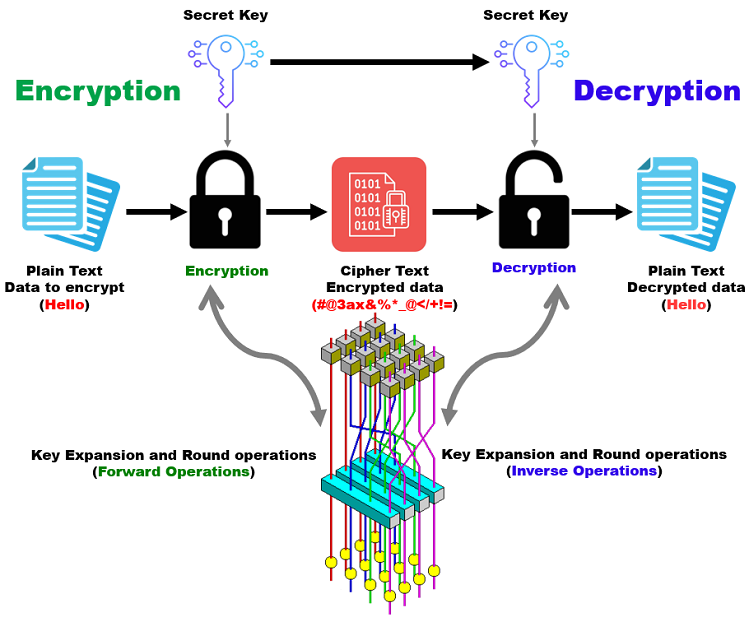

The choice of this decoding and encoding approach is entirely based on you. We just chose the easiest path to keep things simple. Now equipped with these functions, we can define the logic to update the sidebar.

//+------------------------------------------------------------------+
//| Update Sidebar Dynamically                                       |
//+------------------------------------------------------------------+
void UpdateSidebarDynamic() {
   int total = ObjectsTotal(0, 0, -1);           //--- Get total number of chart objects
   for (int j = total - 1; j >= 0; j--) {       //--- Iterate through objects in reverse
      string name = ObjectName(0, j, 0, -1);     //--- Get object name
      if (StringFind(name, "ChatGPT_NewChatButton") == 0 || StringFind(name, "ChatGPT_ClearButton") == 0 || StringFind(name, "ChatGPT_HistoryButton") == 0 || StringFind(name, "ChatGPT_ChatLabel_") == 0 || StringFind(name, "ChatGPT_ChatBg_") == 0 || StringFind(name, "ChatGPT_SidebarLogo") == 0 || StringFind(name, "ChatGPT_NewChatIcon") == 0 || StringFind(name, "ChatGPT_NewChatLabel") == 0 || StringFind(name, "ChatGPT_ClearIcon") == 0 || StringFind(name, "ChatGPT_ClearLabel") == 0 || StringFind(name, "ChatGPT_HistoryIcon") == 0 || StringFind(name, "ChatGPT_HistoryLabel") == 0) { //--- Check if object is part of sidebar
         ObjectDelete(0, name);                  //--- Delete sidebar object
      }
   }
   int sidebarX = g_dashboardX;                   //--- Set sidebar x position
   int itemY = g_mainY + 10;                     //--- Set initial item y position
   string sidebar_logo_resource = (StringLen(g_scaled_sidebar_resource) > 0) ? g_scaled_sidebar_resource : resourceImgLogo; //--- Select sidebar logo resource
   createBitmapLabel("ChatGPT_SidebarLogo", sidebarX + (g_sidebarWidth - 81)/2, itemY, 81, 81, sidebar_logo_resource, clrWhite, CORNER_LEFT_UPPER); //--- Create sidebar logo
   ObjectSetInteger(0, "ChatGPT_SidebarLogo", OBJPROP_ZORDER, 1); //--- Set logo z-order
   itemY += 81 + 10;                             //--- Update item y position
   createButton("ChatGPT_NewChatButton", sidebarX + 5, itemY, g_sidebarWidth - 10, g_buttonHeight, "", clrWhite, 11, new_chat_original_bg, clrRoyalBlue); //--- Create new chat button
   ObjectSetInteger(0, "ChatGPT_NewChatButton", OBJPROP_ZORDER, 1); //--- Set new chat button z-order
   string newchat_icon_resource = (StringLen(g_scaled_newchat_resource) > 0) ? g_scaled_newchat_resource : resourceNewChat; //--- Select new chat icon resource
   createBitmapLabel("ChatGPT_NewChatIcon", sidebarX + 5 + 10, itemY + (g_buttonHeight - 30)/2, 30, 30, newchat_icon_resource, clrNONE, CORNER_LEFT_UPPER); //--- Create new chat icon
   ObjectSetInteger(0, "ChatGPT_NewChatIcon", OBJPROP_ZORDER, 2); //--- Set new chat icon z-order
   ObjectSetInteger(0, "ChatGPT_NewChatIcon", OBJPROP_SELECTABLE, false); //--- Disable new chat icon selectability
   createLabel("ChatGPT_NewChatLabel", sidebarX + 5 + 10 + 30 + 5, itemY + (g_buttonHeight - 20)/2, "New Chat", clrWhite, 11, "Arial", CORNER_LEFT_UPPER); //--- Create new chat label
   ObjectSetInteger(0, "ChatGPT_NewChatLabel", OBJPROP_ZORDER, 2); //--- Set new chat label z-order
   ObjectSetInteger(0, "ChatGPT_NewChatLabel", OBJPROP_SELECTABLE, false); //--- Disable new chat label selectability
   itemY += g_buttonHeight + 5;                  //--- Update item y position
   createButton("ChatGPT_ClearButton", sidebarX + 5, itemY, g_sidebarWidth - 10, g_buttonHeight, "", clrWhite, 11, clear_original_bg, clrIndianRed); //--- Create clear button
   ObjectSetInteger(0, "ChatGPT_ClearButton", OBJPROP_ZORDER, 1); //--- Set clear button z-order
   string clear_icon_resource = (StringLen(g_scaled_clear_resource) > 0) ? g_scaled_clear_resource : resourceClear; //--- Select clear icon resource
   createBitmapLabel("ChatGPT_ClearIcon", sidebarX + 5 + 10, itemY + (g_buttonHeight - 30)/2, 30, 30, clear_icon_resource, clrNONE, CORNER_LEFT_UPPER); //--- Create clear icon
   ObjectSetInteger(0, "ChatGPT_ClearIcon", OBJPROP_ZORDER, 2); //--- Set clear icon z-order
   ObjectSetInteger(0, "ChatGPT_ClearIcon", OBJPROP_SELECTABLE, false); //--- Disable clear icon selectability
   createLabel("ChatGPT_ClearLabel", sidebarX + 5 + 10 + 30 + 5, itemY + (g_buttonHeight - 20)/2, "Clear", clrWhite, 11, "Arial", CORNER_LEFT_UPPER); //--- Create clear label
   ObjectSetInteger(0, "ChatGPT_ClearLabel", OBJPROP_ZORDER, 2); //--- Set clear label z-order
   ObjectSetInteger(0, "ChatGPT_ClearLabel", OBJPROP_SELECTABLE, false); //--- Disable clear label selectability
   itemY += g_buttonHeight + 10;                 //--- Update item y position
   createButton("ChatGPT_HistoryButton", sidebarX + 5, itemY, g_sidebarWidth - 10, g_buttonHeight, "", clrBlack, 12, clrWhite, clrGray); //--- Create history button
   ObjectSetInteger(0, "ChatGPT_HistoryButton", OBJPROP_ZORDER, 1); //--- Set history button z-order
   string history_icon_resource = (StringLen(g_scaled_history_resource) > 0) ? g_scaled_history_resource : resourceHistory; //--- Select history icon resource
   createBitmapLabel("ChatGPT_HistoryIcon", sidebarX + 5 + 10, itemY + (g_buttonHeight - 30)/2, 30, 30, history_icon_resource, clrNONE, CORNER_LEFT_UPPER); //--- Create history icon
   ObjectSetInteger(0, "ChatGPT_HistoryIcon", OBJPROP_ZORDER, 2); //--- Set history icon z-order
   ObjectSetInteger(0, "ChatGPT_HistoryIcon", OBJPROP_SELECTABLE, false); //--- Disable history icon selectability
   createLabel("ChatGPT_HistoryLabel", sidebarX + 5 + 10 + 30 + 5, itemY + (g_buttonHeight - 20)/2, "History", clrBlack, 12, "Arial", CORNER_LEFT_UPPER); //--- Create history label
   ObjectSetInteger(0, "ChatGPT_HistoryLabel", OBJPROP_ZORDER, 2); //--- Set history label z-order
   ObjectSetInteger(0, "ChatGPT_HistoryLabel", OBJPROP_SELECTABLE, false); //--- Disable history label selectability
   itemY += g_buttonHeight + 5;                  //--- Update item y position
   int numChats = MathMin(ArraySize(chats), 7);  //--- Limit number of chats to display
   int chatIndices[7];                           //--- Declare array for chat indices
   for (int i = 0; i < numChats; i++) {          //--- Iterate to set chat indices
      chatIndices[i] = ArraySize(chats) - 1 - i; //--- Set index for latest chats first
   }
   for (int i = 0; i < numChats; i++) {          //--- Iterate through chats to display
      int chatIdx = chatIndices[i];              //--- Get chat index
      string hashed_id = EncodeID(chats[chatIdx].id); //--- Encode chat ID to base62
      string fullText = chats[chatIdx].title + " > " + hashed_id; //--- Create full chat title text
      string labelText = fullText;               //--- Initialize label text
      if (StringLen(fullText) > 19) {            //--- Check if text exceeds length limit
         labelText = StringSubstr(fullText, 0, 16) + "..."; //--- Truncate text with ellipsis
      }
      string bgName = "ChatGPT_ChatBg_" + hashed_id; //--- Generate background object name
      string labelName = "ChatGPT_ChatLabel_" + hashed_id; //--- Generate label object name
      color bgColor = clrWhite;                  //--- Set background color
      color borderColor = clrGray;               //--- Set border color
      createRecLabel(bgName, sidebarX + 5 + 10, itemY, g_sidebarWidth - 10 - 10, 25, clrBeige, 1, DarkenColor(clrBeige, 9), BORDER_FLAT, STYLE_SOLID); //--- Create chat background rectangle
      ObjectSetInteger(0, bgName, OBJPROP_ZORDER, 1); //--- Set background z-order
      color textColor = (chats[chatIdx].id == current_chat_id) ? clrBlue : clrBlack; //--- Set text color based on selection
      createLabel(labelName, sidebarX + 10 + 10, itemY + 3, labelText, textColor, 10, "Arial", CORNER_LEFT_UPPER, ANCHOR_LEFT_UPPER); //--- Create chat label
      ObjectSetInteger(0, labelName, OBJPROP_ZORDER, 2); //--- Set label z-order
      itemY += 25 + 5;                           //--- Update item y position
   }
   ChartRedraw();                                //--- Redraw chart to reflect changes
}

With a clean slate, we rebuild the sidebar from the ground up at position "g_dashboardX". We start by mounting the "ChatGPT_SidebarLogo" using "createBitmapLabel" and our "g_scaled_sidebar_resource", because every good cockpit needs a brand insignia.

Next, we wire up the main controls: the "ChatGPT_NewChatButton", "ChatGPT_ClearButton", and "ChatGPT_HistoryButton" using "createButton". We give them some visual flair with their accompanying icons ("ChatGPT_NewChatIcon", etc.) via "createBitmapLabel" and text labels ("ChatGPT_NewChatLabel", etc.) with "createLabel". We set their "OBJPROP_ZORDER" and disable their selectability with OBJPROP_SELECTABLE so they don't get accidentally highlighted like a misplaced museum piece.

Finally, we populate the sidebar with up to seven of our most recent chats from the "chats" array. We encode their IDs with "EncodeID" for a compact look, then create a background "ChatGPT_ChatBg_" and a text "ChatGPT_ChatLabel_" for each using "createRecLabel" and "createLabel". If a chat title gets too long-winded, we politely cut it short with "StringSubstr". And to show which chat is currently holding the microphone, we highlight the active one in "clrBlue" by comparing it to the "current_chat_id". A quick ChartRedraw later, and we have a seamless sidebar experience. When we call this function during initialization, we get the following outcome.

With the sidebar fully updated, we are now all good. We just need to take care of the elements that we did create when needed to in the "OnDeinit" event handler.

//+------------------------------------------------------------------+
//| Expert Deinitialization Function                                 |
//+------------------------------------------------------------------+
void OnDeinit(const int reason) {
   UpdateCurrentHistory();                           //--- Update current chat history
   ObjectsDeleteAll(0, "ChatGPT_");                  //--- Delete all ChatGPT objects
   DeleteScrollbar();                                //--- Delete main scrollbar elements
   DeletePromptScrollbar();                          //--- Delete prompt scrollbar elements
   if (StringLen(g_scaled_image_resource) > 0) {     //--- Check if main image resource exists
      ResourceFree(g_scaled_image_resource);         //--- Free main image resource
   }
   if (StringLen(g_scaled_sidebar_resource) > 0) {   //--- Check if sidebar image resource exists
      ResourceFree(g_scaled_sidebar_resource);       //--- Free sidebar image resource
   }
   if (StringLen(g_scaled_newchat_resource) > 0) {   //--- Check if new chat icon resource exists
      ResourceFree(g_scaled_newchat_resource);       //--- Free new chat icon resource
   }
   if (StringLen(g_scaled_clear_resource) > 0) {     //--- Check if clear icon resource exists
      ResourceFree(g_scaled_clear_resource);         //--- Free clear icon resource
   }
   if (StringLen(g_scaled_history_resource) > 0) {   //--- Check if history icon resource exists
      ResourceFree(g_scaled_history_resource);       //--- Free history icon resource
   }
   if (logFileHandle != INVALID_HANDLE) {            //--- Check if log file is open
      FileClose(logFileHandle);                      //--- Close log file
   }
}

//+------------------------------------------------------------------+
//| Expert Tick Function                                             |
//+------------------------------------------------------------------+
void OnTick() {
}

//+------------------------------------------------------------------+
//| Hide Dashboard                                                   |
//+------------------------------------------------------------------+
void HideDashboard() {
   dashboard_visible = false;                        //--- Set dashboard visibility to false
   for (int i = 0; i < objCount; i++) {              //--- Iterate through dashboard objects
      ObjectDelete(0, dashboardObjects[i]);          //--- Delete dashboard object
   }
   DeleteScrollbar();                                //--- Delete main scrollbar elements
   DeletePromptScrollbar();                          //--- Delete prompt scrollbar elements
   ObjectDelete(0, "ChatGPT_DashboardBg");           //--- Delete dashboard background
   ObjectDelete(0, "ChatGPT_SidebarBg");             //--- Delete sidebar background
   ChartRedraw();                                    //--- Redraw chart to reflect changes
}

The OnTick function remains empty for now, as our program is a creature of event-driven whims. Meanwhile, the "HideDashboard" function plays hide-and-seek masterfully: it sets "dashboard_visible" to false, deletes all objects in the "dashboardObjects" array using ObjectDelete, removes "ChatGPT_DashboardBg" and "ChatGPT_SidebarBg", and banishes the scrollbars with "DeleteScrollbar" and "DeletePromptScrollbar". A final "ChartRedraw" function refreshes the chart, making the UI vanish seamlessly. We call this masterful disappearing act when we click the close chat button.

Also, now that we append chart data to our prompt, we need to upgrade the function that sends the prompt message. Here is the logic we used to achieve that.

//+------------------------------------------------------------------+
//| Submit User Prompt and Handle Response                           |
//+------------------------------------------------------------------+
void SubmitMessage(string prompt) {
   if (StringLen(prompt) == 0) return;       //--- Exit if prompt is empty
   string timestamp = TimeToString(TimeCurrent(), TIME_MINUTES); //--- Get current time as string
   string response = "";                     //--- Initialize response string
   bool send_to_api = true;                  //--- Set flag to send to API
   if (StringFind(prompt, "set title ") == 0) { //--- Check if prompt is a title change
      string new_title = StringSubstr(prompt, 10); //--- Extract new title
      current_title = new_title;             //--- Set current chat title
      response = "Title set to " + new_title; //--- Set response message
      send_to_api = false;                   //--- Disable API call
      UpdateCurrentHistory();                //--- Update current chat history
      UpdateSidebarDynamic();                //--- Update sidebar display
   }
   if (send_to_api) {                        //--- Check if API call is needed
      Print("Chat ID: " + IntegerToString(current_chat_id) + ", Title: " + current_title); //--- Log chat ID and title
      FileWrite(logFileHandle, "Chat ID: " + IntegerToString(current_chat_id) + ", Title: " + current_title); //--- Write chat ID and title to log
      Print("User: " + prompt);              //--- Log user prompt
      FileWrite(logFileHandle, "User: " + prompt); //--- Write user prompt to log
      response = GetChatGPTResponse(prompt); //--- Get response from ChatGPT API
      Print("AI: " + response);              //--- Log AI response
      FileWrite(logFileHandle, "AI: " + response); //--- Write AI response to log
      if (StringFind(current_title, "Chat ") == 0) { //--- Check if title is default
         current_title = StringSubstr(prompt, 0, 30); //--- Set title to first 30 characters of prompt
         if (StringLen(prompt) > 30) current_title += "..."; //--- Append ellipsis if truncated
         UpdateCurrentHistory();             //--- Update current chat history
         UpdateSidebarDynamic();             //--- Update sidebar display
      }
   }
   conversationHistory += "You: " + prompt + "\n" + timestamp + "\nAI: " + response + "\n" + timestamp + "\n\n"; //--- Append to conversation history
   UpdateCurrentHistory();                   //--- Update current chat history
   UpdateResponseDisplay();                  //--- Update response display
   scroll_pos = MathMax(0, g_total_height - g_visible_height); //--- Set scroll position to bottom
   UpdateResponseDisplay();                  //--- Update response display again
   if (scroll_visible) {                     //--- Check if main scrollbar is visible
      UpdateSliderPosition();                //--- Update main slider position
      UpdateButtonColors();                  //--- Update main scrollbar button colors
   }
   ChartRedraw();                            //--- Redraw chart
}

First, we check if the "prompt" is empty using StringLen and make a quick exit if it is. If we have a real prompt, we capture the current timestamp with TimeToString. Here's where the magic splits: if the prompt starts with "set title " (found via StringFind), we're in configuration mode. We extract the new title with StringSubstr, update the "current_title", set a local "response" to confirm the change, and call "UpdateCurrentHistory" and "UpdateSidebarDynamic" without bothering the AI.

Otherwise, we're in a standard chat. We log the "current_chat_id" and "current_title", then fetch the real AI wisdom using "GetChatGPTResponse". If we're still using a default title, we cleverly generate a new one from the first 30 characters of the prompt. We then append both the prompt and the brilliant response to the "conversationHistory" with their timestamps, making it all official. Finally, we refresh the entire UI with "UpdateResponseDisplay", "UpdateSliderPosition", and "UpdateButtonColors", ensuring we automatically scroll to the bottom using "scroll_pos" and redraw the chart.

We can now update the final part on chart interaction, which follows the same structure we've mastered. We'll just explain the most critical part of the new chat histories; the rest is familiar territory to us now.

//+------------------------------------------------------------------+
//| Handle Chart Events                                              |
//+------------------------------------------------------------------+
void OnChartEvent(const int id, const long &lparam, const double &dparam, const string &sparam) {
   int displayX = g_mainContentX + g_sidePadding;   //--- Calculate main display x position
   int displayY = g_mainY + g_headerHeight + g_padding; //--- Calculate main display y position
   int displayW = g_mainWidth - 2 * g_sidePadding;  //--- Calculate main display width
   int displayH = g_displayHeight;                  //--- Set main display height
   int footerY = displayY + g_displayHeight + g_padding; //--- Calculate footer y position
   int promptY = footerY + g_margin;                //--- Calculate prompt y position
   int promptH = g_promptHeight;                    //--- Set prompt height
   int closeX = g_mainContentX + g_mainWidth - 100 - g_sidePadding; //--- Calculate close button x position
   int closeY = g_mainY + 4;                        //--- Calculate close button y position
   int closeW = 100;                                //--- Set close button width
   int closeH = g_headerHeight - 8;                 //--- Calculate close button height
   int buttonsY = promptY + g_promptHeight + g_margin; //--- Calculate buttons y position
   int buttonW = 140;                               //--- Set button width
   int chartX = g_mainContentX + g_sidePadding;     //--- Calculate chart button x position
   int sendX = g_mainContentX + g_mainWidth - g_sidePadding - buttonW; //--- Calculate send button x position
   int editY = promptY + g_promptHeight - g_editHeight - 5; //--- Calculate edit field y position
   int editX = displayX + g_textPadding;            //--- Calculate edit field x position
   bool need_scroll = g_total_height > g_visible_height; //--- Check if main scrollbar is needed
   bool p_need_scroll = p_total_height > p_visible_height; //--- Check if prompt scrollbar is needed
   if (id == CHARTEVENT_OBJECT_CLICK) {             //--- Handle object click event
      if (StringFind(sparam, "ChatGPT_ChatLabel_") == 0) { //--- Check if chat label clicked
         string hashed_id = StringSubstr(sparam, StringLen("ChatGPT_ChatLabel_")); //--- Extract hashed ID
         int new_id = DecodeID(hashed_id);          //--- Decode chat ID
         int idx = GetChatIndex(new_id);            //--- Get chat index
         if (idx >= 0 && new_id != current_chat_id) { //--- Check if valid and different chat
            UpdateCurrentHistory();                 //--- Update current chat history
            current_chat_id = new_id;               //--- Set new chat ID
            current_title = chats[idx].title;       //--- Set new chat title
            conversationHistory = chats[idx].history; //--- Set new conversation history
            UpdateResponseDisplay();                //--- Update response display
            UpdateSidebarDynamic();                 //--- Update sidebar display
            ChartRedraw();                          //--- Redraw chart
         }
         return;                                    //--- Exit function
      }
   }
}

For "CHARTEVENT_OBJECT_CLICK" events, we check if a "ChatGPT_ChatLabel_" is clicked using StringFind, extract the hashed ID with StringSubstr, decode it with "DecodeID", and switch to the selected chat by updating "current_chat_id", "current_title", and "conversationHistory" via "GetChatIndex", followed by refreshing the UI with "UpdateCurrentHistory", "UpdateResponseDisplay", "UpdateSidebarDynamic", and ChartRedraw, ensuring seamless chat navigation in the sidebar. When we compile, we get the following outcome.

From the visualization, we can see the chart events are working beautifully. For the chats, we can confirm they are perfectly persistent between sessions, allowing us to retrieve old conversations and continue them seamlessly. They are securely encrypted, so if you try to peek at the log file, you should be greeted by something completely unreadable to humans, like the following sample from our own tests:

From the visualization, we can see we've successfully upgraded the program by adding new elements, displaying a fully functional scrollable prompt section, and crafting an interface that's genuinely interactable with persistent chats. We have, therefore, successfully achieved our core objectives. The final thing that remains is backtesting the program, and that adventure is handled in the next section.

Backtesting the Enhancements

We did the testing, and below is the compiled visualization in a single Graphics Interchange Format (GIF) bitmap image format.

Conclusion

In conclusion, we've supercharged our MQL5 program, conquering the ancient beast of multiline input with a robust text-rendering system. We've built a dynamic sidebar for navigating persistent chats, locked down with secure "CRYPT_AES256" encryption and "CRYPT_ARCH_ZIP" compression, and we've even taught it to generate initial trade signals by integrating live chart data.

This powerful system now lets us interact seamlessly with AI-driven market insights, maintaining perfect conversation context across sessions through intuitive controls, all wrapped in a visually branded UI complete with dual scrollbars. For the next versions, we'll further refine AI-driven signal generation and explore the thrilling frontier of automated trade execution to elevate our trading assistant from a savvy advisor to a full-blown digital co-pilot. Stay tuned. Meanwhile, you can watch the whole lesson about the creation that we have made in our YouTube video lesson.

Attached Files
